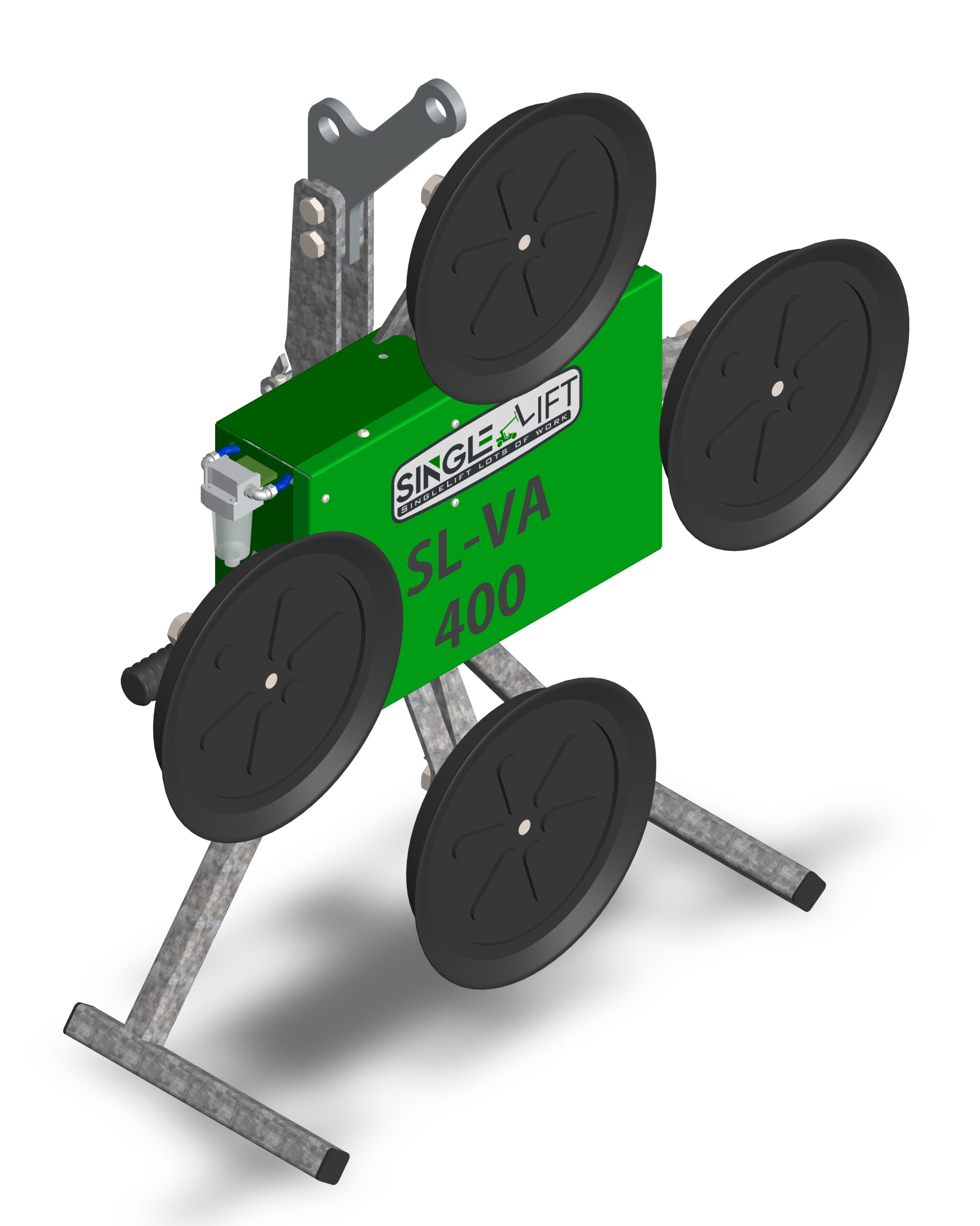

SL-VA-400
SL-VA-400 is a vacuum lifting device specially designed to safely and precisely lift glass, panels, and other flat-surfaced elements weighing up to 400 kg. Its modular structure allows it to be easily adapted to different applications, offering high flexibility.
Max. Load
400KG
Type
Battery
Manual Movement Capability:
Loads can be tilted 90° and rotated 360° manually. The rotation movement can be locked at every 45°, making alignment and installation processes significantly easier.High-Precision Placement:
Ensures the precise alignment of fragile surfaces such as glass onto façades, delivering flawless results in architectural applications.Independent Operation with Rechargeable Battery:
Thanks to its integrated rechargeable battery, it can be used for extended periods at construction sites or workshops without the need for an electrical connection.Energy-Efficient Vacuum Pump:
The adjustable vacuum pump automatically stops once the target vacuum level is reached, extending battery life. When the vacuum power drops, the system reactivates to restore suction.Enhanced Suction Cups for Secure Grip:
The 290 mm diameter suction discs provide strong adhesion. Spring-loaded joints and pushers support optimal surface contact.Long-Lasting Performance:
The adjustable vacuum pump is suitable for up to eight hours of continuous operation, making it ideal for applications requiring intensive use.Wide Equipment Compatibility:
Fully compatible with the SL-5000-300 portable lifting platform. It can also be integrated with truck-mounted cranes and overhead cranes.Control Options:
Depending on user preference, the device is available with two control systems:Remote control with a range of up to 100 meters
Wired control with a 5-meter cable
If you want, I can also rewrite this into a polished product brochure style so it reads more fluidly and marketing-friendly. That way it won’t just be a translation, but a persuasive piece.
Technical details
Specification | Value |
---|---|
Box Dimensions | 750 x 750 x 320 mm (10 kg ± 2) |
Number of Pads | 4 pcs |
Machine Weight | 37 kg ± 2 |
Electrical System | 12 V 14 Ah |
Pad Diameter | 290 mm |
Maximum Load Capacity | 400 kg |
Manual Tilting Angle | 0° / 90° |
Manual Rotation Angle | 360° |
Download
