YARASA Vertical (Tilt, Turn)

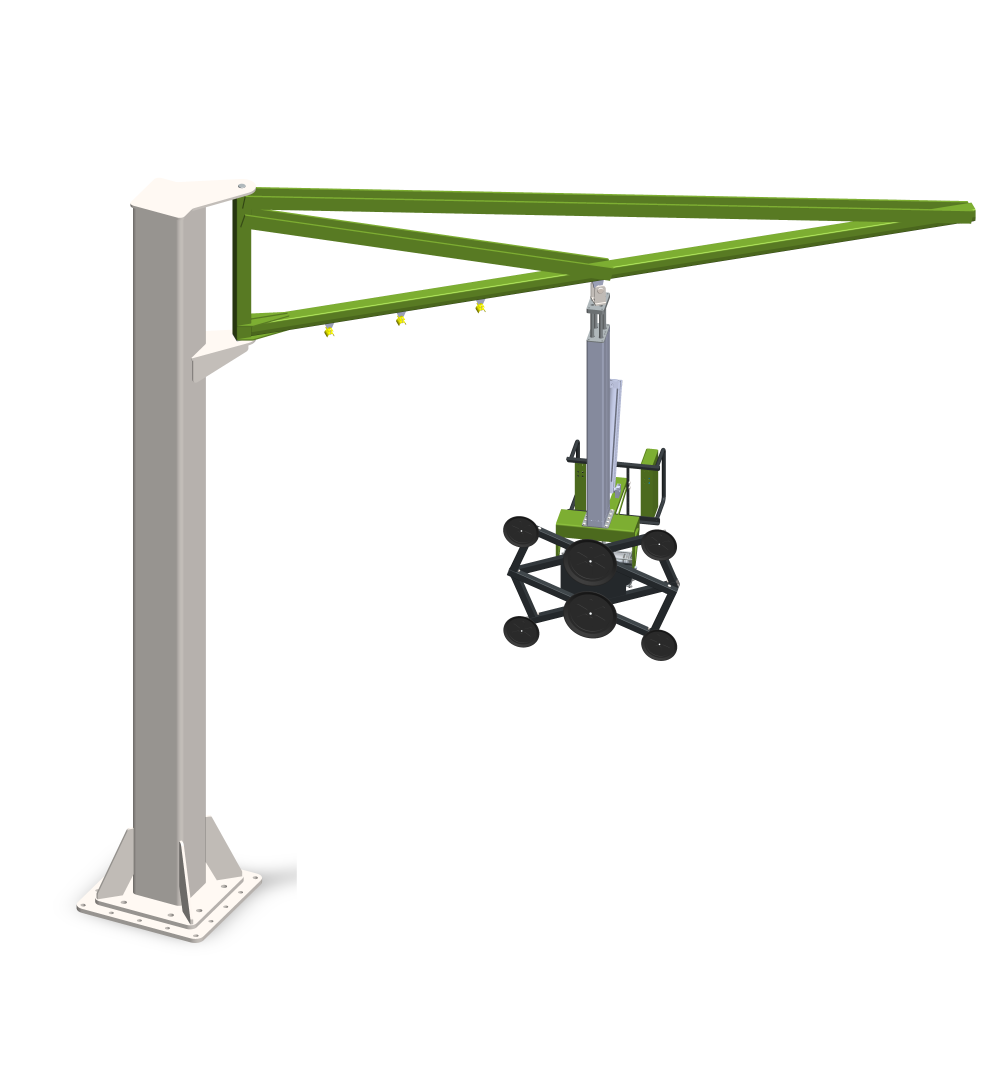

SingleLift has developed the Yarasa series for production lines. Yarasa series vacuum lifts are designed for use in production lines for glass, marble, ceramics and wood materials.

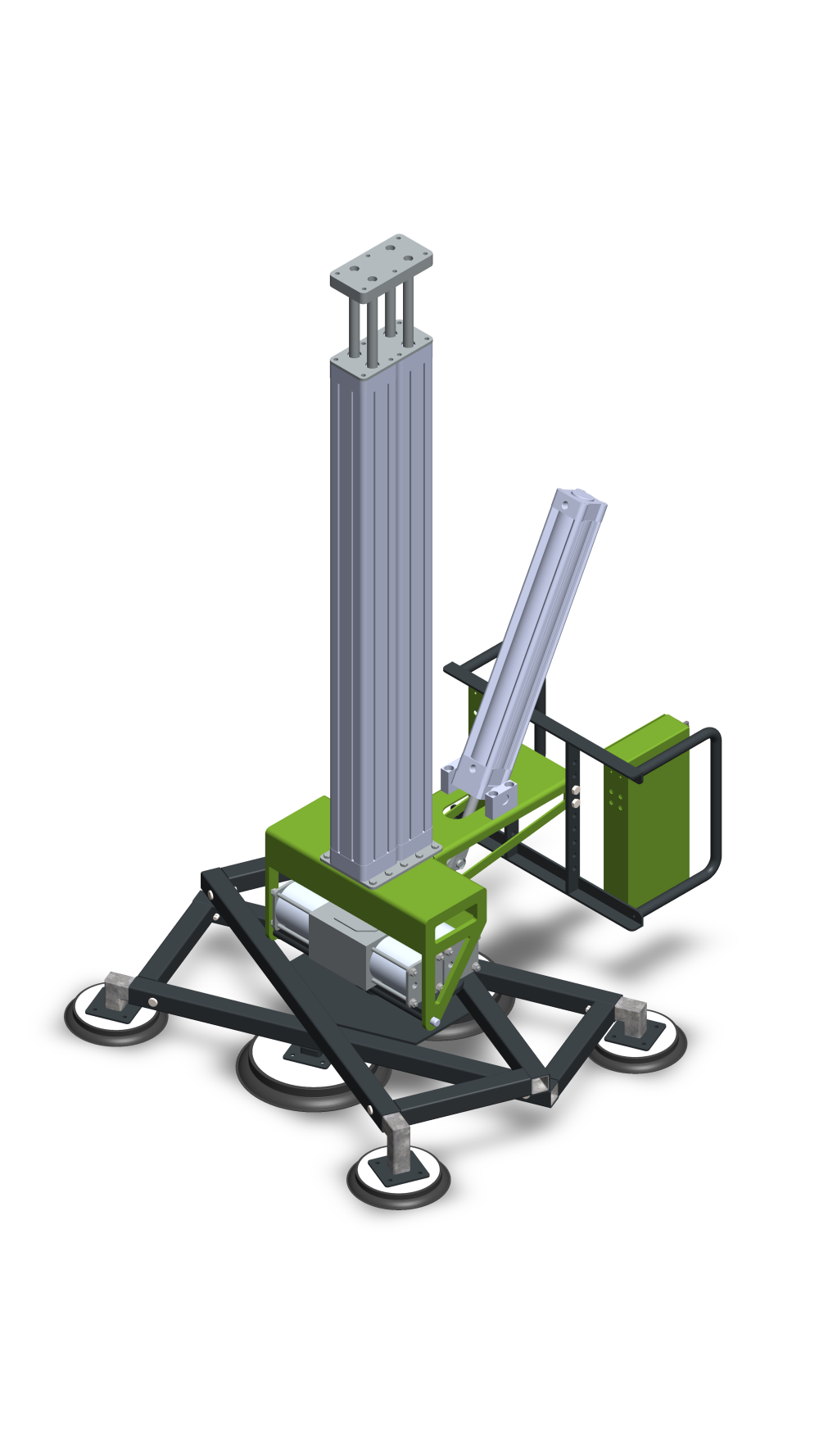

We are pleased to introduce the SL-PVL-500VRT model of the Yarasa series with vertical lift, 90 degree rotation and 90 degree tilt. SL-PVL-500VRT model has a total of 6 suction cups, 2 in the center and 4 on the sides.

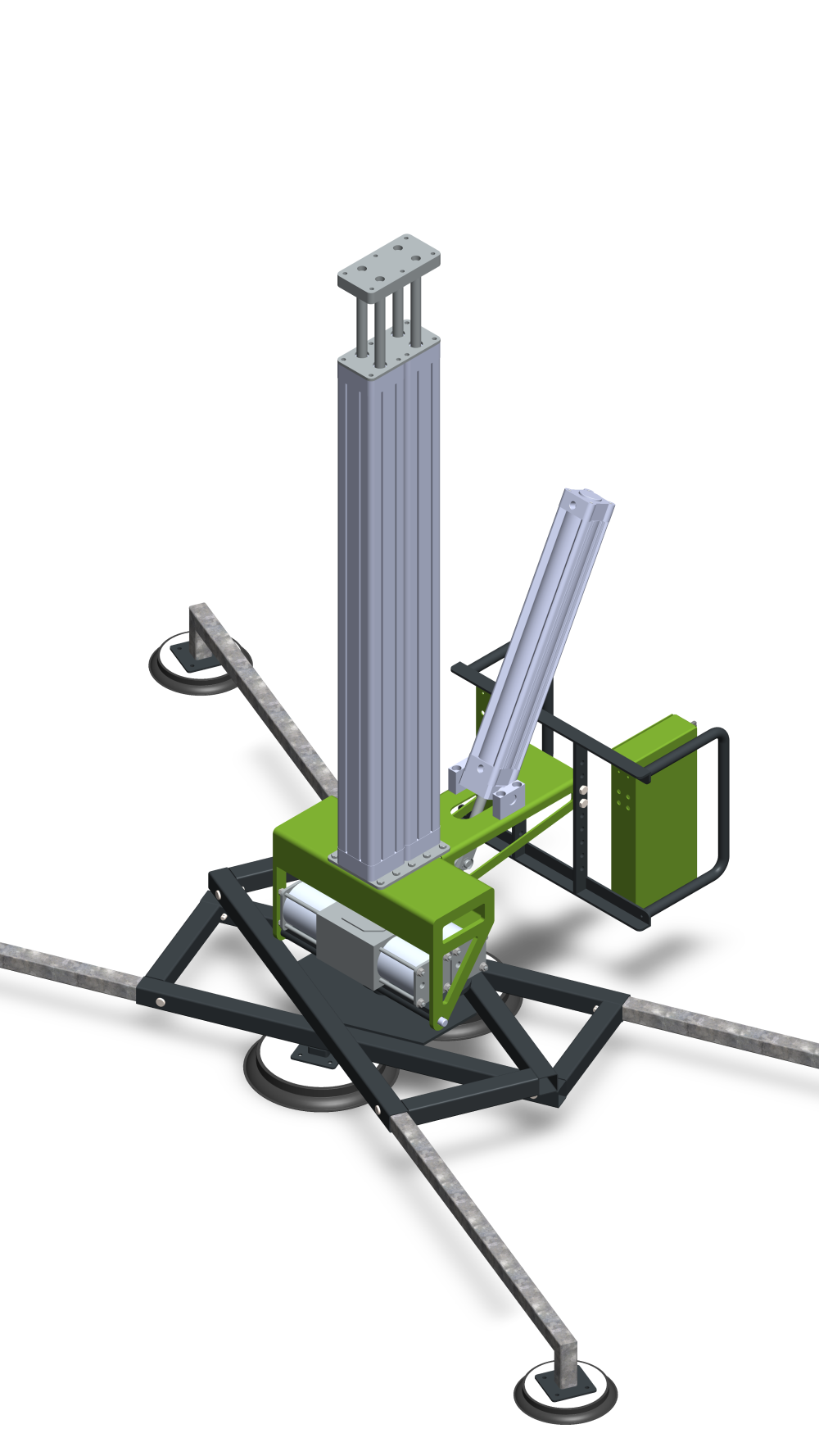

Large windows can be easily lifted by extending the suction cups attached to the extension arms.
This model is also available as SL-PVL-1000VRT with larger suction cups and 1000 kg lifting capacity.
Translated with DeepL.com (free version)
Max. CARRYING
500KG
Type
PNEUMATIC
Technical Details
| Technical Specifications | |
|---|---|
| Application | Glass panels, marbles, steel, and wood |
| Lifting Capacity | 500 kg |
| Suction Pads | 2 center pads (diameter 290 mm), 4 round pads (diameter 290 mm) |
| Load Movement |
1000 mm up & down movement 90° pneumatic rotation 90° pneumatic tilt |
| Operating System | Compressed air |
| Vacuum System | Single vacuum circuit with ejector at all pads |
| Weight of the Device | 100 kg |
| Control |
Manual on/off valve on the frame Load release via dual-action safety command Joystick on the handlebar for up & down movement |
