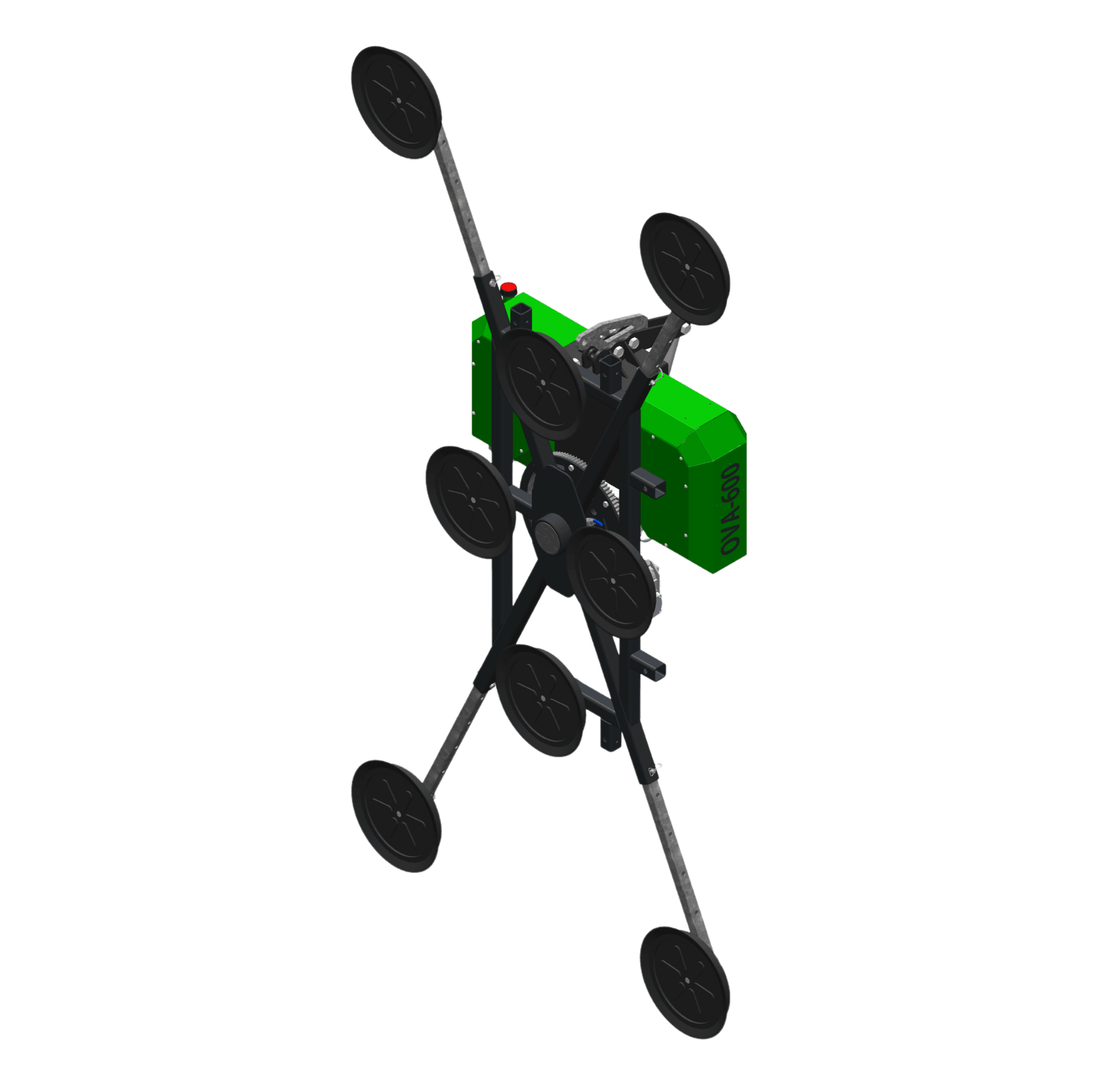

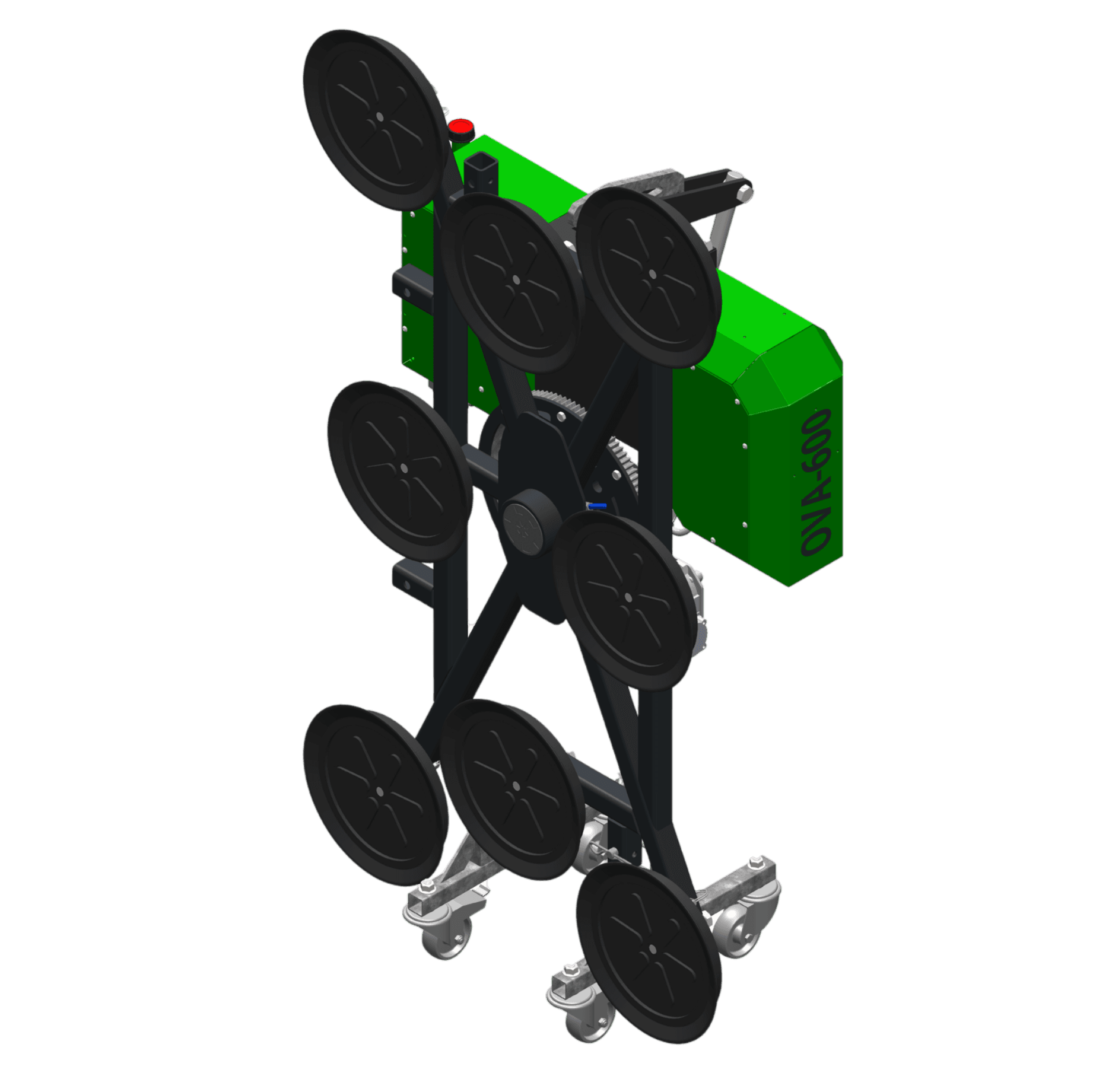

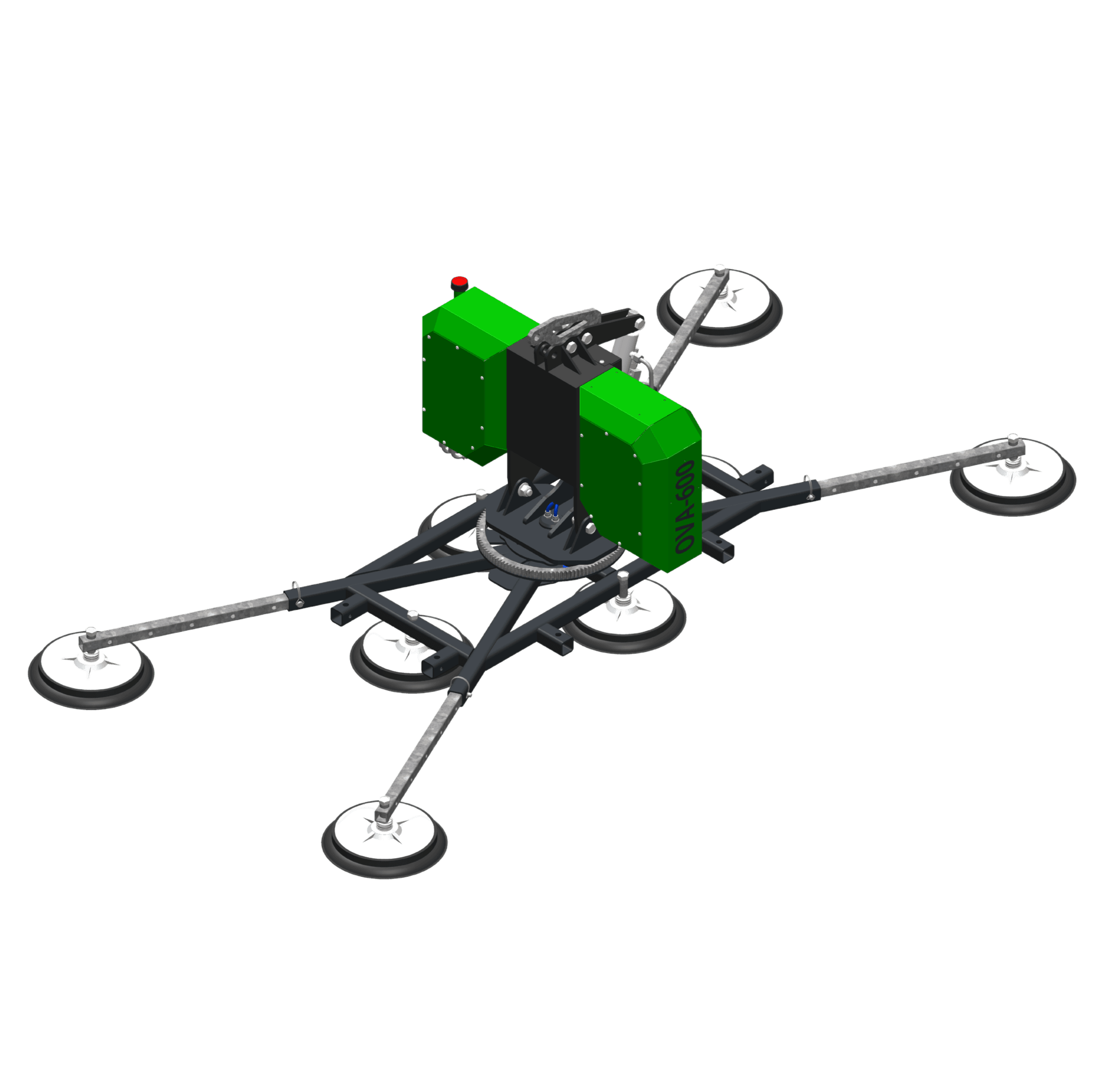

SL-OVA-600
SL-OVA-600, the most compact and practical model in SingleLift’s OVA series, has been developed especially for glass and panel installation in confined spaces.
Capable of safely lifting materials weighing up to 600 kg, this device offers ease of operation with its automatic systems while prioritizing workplace safety.
Max. Load
600KG
Type
Battery
Automatic Control:
The device can rotate continuously at 360° and perform 90° tilting automatically. This allows for high-precision placement with minimal operator intervention.
Dual-Circuit Vacuum System:
Designed with safety as a priority, this system provides redundant vacuum pressure at all times, ensuring safe handling against sudden pressure losses.
Multiple Power Options:
Can be used with 220V electricity for indoor factory applications, or operate wirelessly on construction sites with a 24V battery.
High Mobility:
Easily transportable thanks to its trolley, enabling quick positioning both indoors and outdoors.
Quiet Operation:
Its electric structure and optimized motor technology provide silent operation – ideal for working in enclosed spaces.
Durable Construction:
The 450 mm diameter suction cups deliver strong adhesion and stability.
TECHNICAL DETAILS
| Specification | Value |
|---|---|
| Dimensions | 470 x 650 x 1530 mm |
| Number of Pads | 4+4 |
| Weight | 115 kg ±10 |
| Electrical System | 24V / 28Ah |
| Pad Diameter | 290 mm |
| Maximum Load Capacity | 600 kg |
| Automatic Tilting Angle | 0° – 90° |
| Automatic Rotation Angle | 360° |
